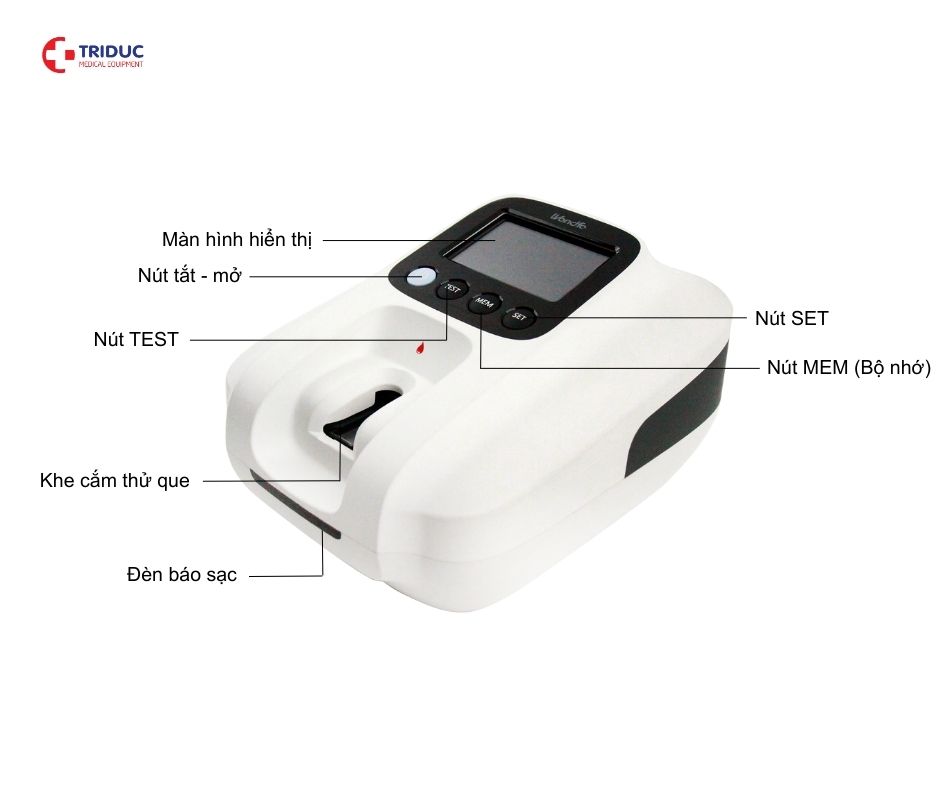

OCG-102 Optical Coagulation Analyzer

1. Outstanding features

• Compact and convenient.
• Use test strips with dry chemicals, can be stored at room temperature, ready to use.
• Built-in rechargeable battery in case of power outage.
• Single-use test strips help prevent cross-contamination.
• Quality control: External QC inspection should ensure stability.
• Connect to LIS using Ethernet network port to download data.
• Print results via external printer.
• Economic in coagulation analysis testing.

2. Machine configuration

• Memory: 300 test results and 12 QC results.
• Display: 3.5 inch color touch screen.
• Power source: Adapter Input: 100-240Vac, 50/60Hz, maximum 0.5 A. And Adapter Output: 9V, 2A
• Power source: 9V, 18W
• Battery: 2 rechargeable lithium 18650 batteries, 3.7V.
• Battery life: approximately 300 charges, depending on frequency of use.
• Printer: External printer connects via serial port.
• Dimensions: 220mm x 175mm x 130mm.
• Weight: 850g (excluding battery).

3. Operating conditions

• Temperature: 10 degrees Celsius - 32 degrees Celsius.
• Relative humidity: 10%-80% (no condensation).

4. Standard machine configuration

• 01 x Main machine.
• 01 x Power cord.
• 01 x User manual
